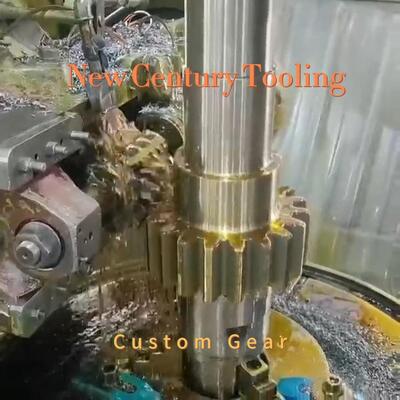

CNC Machined 20CrMnTi Alloy Steel Transmission Gear Shaft with HRC 58-62 Hardness and +/-0.005mm Tolerance

CNC Machined 20CrMnTi Alloy Steel Transmission Gear Shaft with HRC 58-62 Hardness and +/-0.005mm Tolerance

Large Image :  CNC Machined 20CrMnTi Alloy Steel Transmission Gear Shaft with HRC 58-62 Hardness and +/-0.005mm Tolerance

Product Details:
Place of Origin: Guangdong, China
Brand Name: WNRLN
Certification: ISO 9001:2015
Model Number: TGS-20CRMNTI-02
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: USD 8-50 / Piece
Packaging Details: WNRLN branded carton with shock-proof foam insert, export-grade corrugated carton
Delivery Time: 7 working days for samples, 15-25 days for production
Payment Terms: T/T,L/C,PayPal,Western Union
Supply Ability: 50000 Pieces per Month

CNC Machined 20CrMnTi Alloy Steel Transmission Gear Shaft with HRC 58-62 Hardness and +/-0.005mm Tolerance

Description
Hardness: HRC 58-62 Machining Process: CNC Turning + Gear Hobbing
Heat Treatment: Carburizing + Quenching Tolerance: +/-0.005mm
Material: 20CrMnTi Alloy Steel Straightness Control: Under 0.01mm
Highlight:

CNC Machined Hardened Shaft

,

20CrMnTi Gear Shaft

,

Automotive Transmission Part

CNC Machined Steel Transmission Gear Shaft 20CrMnTi Hardened Precision Automotive Drive Component
This CNC machined steel transmission gear shaft is produced from 20CrMnTi alloy steel with precision turning, gear hobbing and carburizing hardening, ensuring reliable torque transmission for automotive gearboxes.
Key Features
  • CNC turning and milling with +/-0.005mm tolerance
  • 20CrMnTi carburized and hardened to HRC 58-62
  • Gear tooth profile verified with gear measuring center
  • Straightness and concentricity controlled under 0.01mm
  • Mold design service available for forging dies and tooling
CNC Machining Capability
CNC lathes with live tooling complete turning, milling, drilling and thread cutting in one clamping, guaranteeing perfect coaxiality for transmission shafts.
Mold Design & Tooling Support
Our mold design engineers develop forging dies, cold extrusion dies and inspection fixtures to support high-volume automotive shaft production.
Applications
Manual transmissions, automatic gearboxes, transfer cases, differentials and EV reducer units.
Technical Specifications
Material 20CrMnTi Alloy Steel
Hardness HRC 58-62 (Carburized)
Machining Process CNC Turning + Gear Hobbing
Tolerance +/-0.005mm
Surface Treatment Black Oxide / Phosphating
Inspection Gear Measuring Center
Contact our engineering team for custom CNC machined parts, prototype tooling and mold design support. OEM and ODM orders are welcome.
