CNC Machined Mold Insert H13 Tool Steel with HRC 48-52 Hardness and +/-0.005mm Tolerance
|
Product Details:
|
CNC Machined Mold Insert H13 Tool Steel with HRC 48-52 Hardness and +/-0.005mm Tolerance
Description| Hardness: | HRC 48-52 | Machining Process: | CNC + EDM + Grinding |
|---|---|---|---|
| Surface Finish: | Ra 0.2um | Service: | Mold Design + DFM + Mold Flow Analysis |
| Material: | H13 Tool Steel | Tolerance: | +/-0.005mm |
| Mirror Polished: | Yes | ||
| Highlight: | Precision Mold Design Service,CNC Machined H13 Insert,Automotive Injection Tooling |
||
CNC Machined Mold Insert H13 Steel Precision Mold Design Automotive Injection Tooling

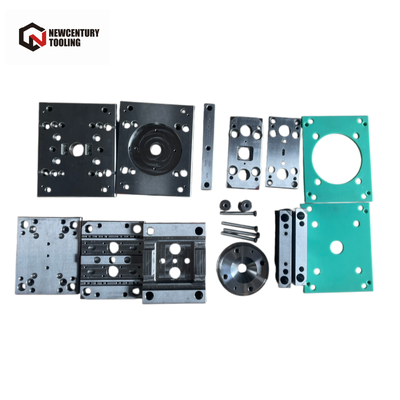

CNC Machined Mold Insert H13 Steel
This CNC machined mold insert is manufactured from H13 tool steel with CNC milling, EDM and precision grinding, backed by professional mold design services for automotive plastic injection tooling.
Key Features
- H13 tool steel hardened to HRC 48-52
- CNC milling and EDM with +/-0.005mm tolerance
- Mirror polished cavity surface Ra 0.2um
- Full mold design service with DFM analysis
- Interchangeable inserts for multi-cavity mold systems
CNC Machining Capability
High-speed CNC machining combined with wire-cut EDM and jig grinding delivers precise mold inserts with excellent surface finish and long tool life.
Mold Design & Tooling Support
Our mold design team provides complete injection mold design, DFM reports, mold flow analysis and trial-shot support for automotive parts including bumpers, dashboards and connectors.
Applications
Automotive injection molds, medical device molds, consumer electronics housings and industrial part tooling.
Technical Specifications
| Material | H13 Tool Steel |
| Hardness | HRC 48-52 |
| Machining Process | CNC + EDM + Grinding |
| Tolerance | +/-0.005mm |
| Surface Finish | Ra 0.2um (Mirror Polished) |
| Service | Mold Design + DFM + Mold Flow |
Contact our engineering team for custom CNC machined parts, prototype tooling and mold design support. OEM and ODM orders are welcome.
